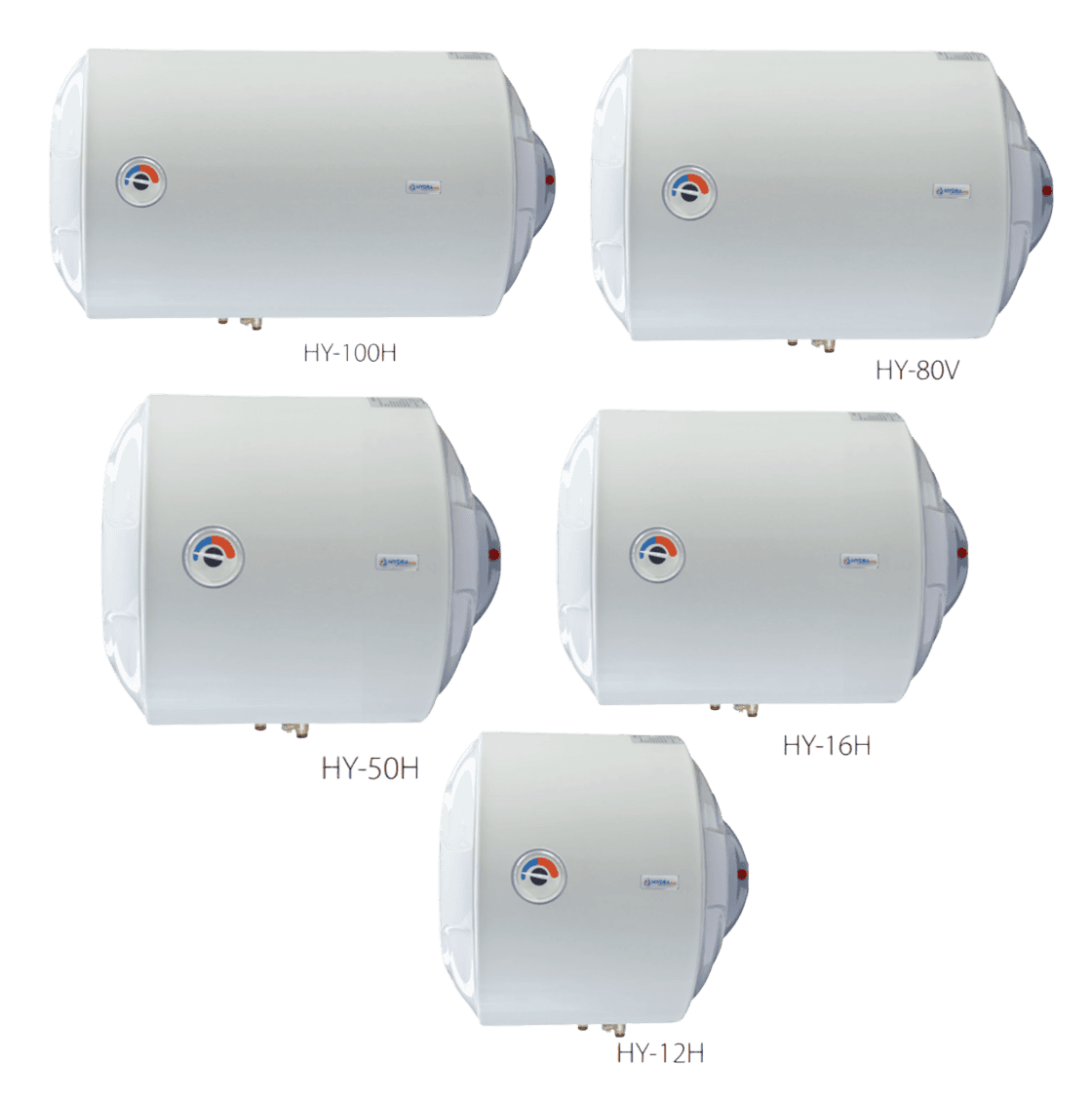

Horizontal Wall Mount
Energy Efficient Power Saving Technology
Cutting-Edge Space & Efficiency
The Horizontal Wall Mount Heater from Hydramax Water Heater is a cutting-edge water heating solution designed to maximize both space and efficiency. This product offers a unique and space-saving design, making it an excellent choice for a variety of applications.
Whether used for single-point applications, small households, or as a point-of-use heater in larger systems, this product caters to a wide range of hot water needs.
40-100L
1.2-1.5kW
Key Features
Space-Saving Design
The horizontal orientation allows this heater to be conveniently mounted on a wall, saving valuable floor space in homes, offices, and commercial settings. Its compact design is ideal for areas with limited installation space.
Efficient Heating Performance
Equipped with high-performance heating elements that ensure rapid and efficient water heating. This guarantees a constant and reliable supply of hot water while minimizing energy consumption.
Precise Temperature Control
Equipped with advanced temperature control features, typically digital thermostats, which allow users to set and maintain the desired water temperature, providing comfort and convenience.
Versatile Applications
Whether used for single-point applications, small households, or as a point-of-use heater in larger systems, this product caters to a wide range of hot water needs.
Durable Construction
Crafted using high-quality materials to ensure longevity and resistance to corrosion. Hydramax products are known for their robust construction.
Safety Features
Safety mechanisms, such as temperature and pressure relief valves, are integrated to protect against overheating and over-pressurization, enhancing user safety.
Technical Specifications
| Capacity (Liters) | Length (mm) | Diameter (mm) | Voltage (Volt) | Power (kW) | Maximum Working Temp. (°C) | Maximum Working Pressure (Bar) | Ingress Protection |
|---|---|---|---|---|---|---|---|
| 40 | 565 | 440 | 220-240 | 1.2 | 70 | 8 | IPX1 |
| 50 | 565 | 440 | 220-240 | 1.2 | 70 | 8 | IPX1 |
| 60 | 635 | 440 | 220-240 | 1.2 | 70 | 8 | IPX1 |
| 80 | 795 | 440 | 220-240 | 1.5 | 70 | 8 | IPX1 |
| 100 | 960 | 440 | 220-240 | 1.5 | 70 | 8 | IPX1 |
